Specification:
E1 to ethernet protocol/interface converter
FC/SC 1/2 core fiber single mode/multimode
BNC/RJ45
AC/DC 2~120km Desktop

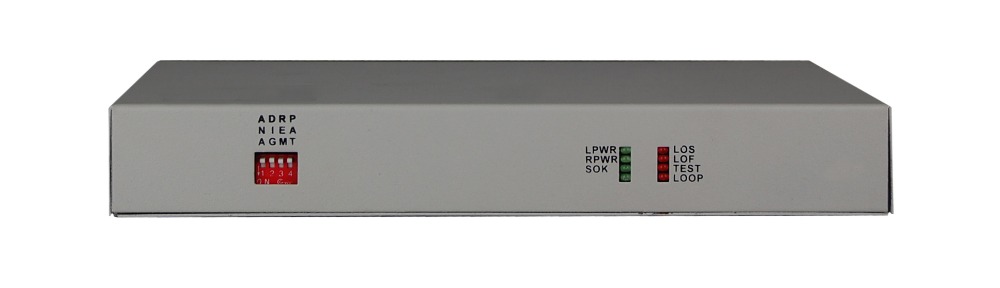

China Supplier Over RJ45 E1/Ethernet Managed Protocol Converter
Product Overview
FC-PCE51converter is based on FPGA, providing one framed E1 interface and one Ethernet interface to achieve 10/100Base-T Ethernet data transmission on the E1 channel. It is a high performance, self-learning Ethernet bridge. This device is the extension device of Ethernet, using network (PDH/SDH/Microwave) that provide E1 channel to achieve local and remote Ethernet interconnecting with serial interfaces at a lower cost. The device has inter-set loop test function to facilitate the project launching and daily maintenance.
Product Features
Ø Can realize monitor and control of remote equipment, OAM management data did not take up user’s timeslot and save E1 bandwidth
Ø E1 supports any timeslot set, the rate is 64K-2048K
Ø The local device can forced the remote device rate follow it
Ø Have the function of E1 interface loop back check, avoid the converter crashed because of interface loop return;
Ø Have indicator when the device is power-off or E1 line is broken or lose signal;
Ø Can set the E1 line that not to send the LINK signal to Ethernet interface while E1 line is broken;
Ø The Ethernet interface supports jumbo frames (2036 Bytes);
Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering
Ø Ethernet interface supports10M/100M, half/full duplex auto- Negation and AUTO-MDIX
Ø Have Ethernet monitor self-reset function, the equipment will not dead
Ø Can achieve the remote device setting any 5 mode of Ethernet and can closed the AUTO-MDIX function;
Ø Provide 2 clock types: E1 master clock and E1 line clock;
Ø Have three Loop Back Mode: E1 interface Loop Back (ANA),Ethernet interface Loop Back(DIG),Command the remote ,Ethernet interface Loop Back(REM)
Ø Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
Ø Support SNMP Network Management;
Technical parameters
| E1 Interface | Interface Standard; comply with protocol G.703 |
| Interface Rate; n*64Kbps±50ppm |
| Interface Code; HDB3 |
| E1 Impedance; 75Ω (unbalance), 120Ω (balance) |
| Jitter tolerance; In accord with protocol G.742 and G.823 |
| Allowed Attenuation; 0~6dBm |
| Ethernet interface (10/100M) | Interface rate; 10/100 Mbps, half/full duplex auto-negotiation |
| Interface Standard; Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) |
| MAC Address Capability; 4096 |
| Connector; RJ45, support Auto-MDIX |
| Power | Power supply; AC180V ~ 260V;DC –48V;DC +24V |
| Power consumption; ≤10W |
| Dimension | Mini; 216X140X31mm( WX DXH) |
| Piece Weight; 1.1KG |
| Working environment | Working temperature; -10°C ~ 50°C |
| Working Humidity; 5%~95 % (no condensation) |
| Storage temperature; -40°C ~ 80°C |
| Storage Humidity; 5%~95 % (no condensation) |
Networking Applications
| Fibreasy | OEM manufacturer |
| Factory | Located in Hangzhou |
| Special requirements | Customized |
| Certifications | ISO9001, CE |
| Payment | T/T, L/C, Wester Union, Paypal |
| Shippment | DHL, Fedex, TNT, UPS, EMS |
| Warranty | 3 years |
